شرح کالا
تراشه آمپای فایر 8002 یک تقویت کننده صوتی صدا است. تراشه های 8002 در کلاس های مختلف با هدف کیفیت بالا با حداقل توان روانه بازار شده اند
از جمله کاربردهای این تراشه در ساخت اسپیکر های صوتی، کامپیوترهای رومیزی،سیستم های صوتی ولتاژ پایین بهره برد
مشخصات کالا
نام کالا: تراشه آمپلی فایر 8002

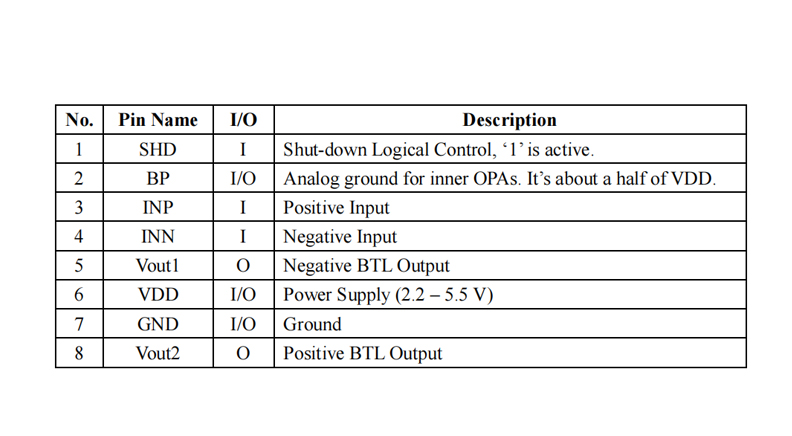

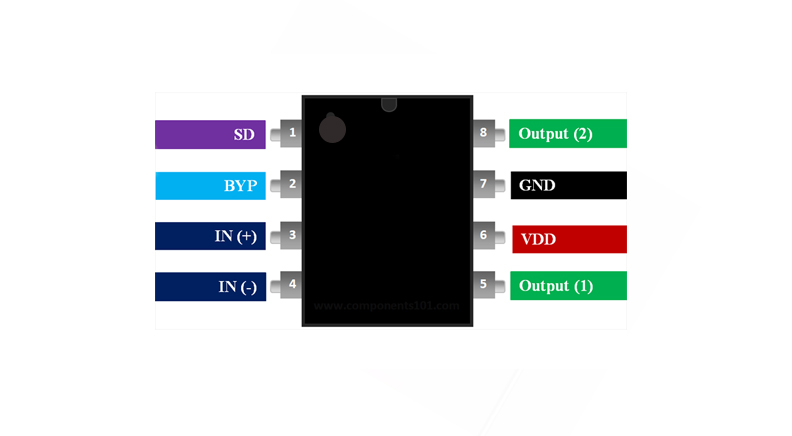

تعداد پایه ها:8 پایه
توان خروجی:60 دسی بل
توان کاری: 1.5 الی 2 وات
ولتاژ کاری: 2.2 الی 5.5 ولت
SOP8 :پکیج
دمای کاری: -40 الی 85+ درجه سانتیگراد
Description
The 8002 is a Class-AB audio power amplifier. It is capable of delivering 2.0 watts of continuous average power to an 4Ω BTL load with less than 10% distortion (THD+N) from a 5VDC power supply, or 1.5 watts continuous average power to an 8 Ω BTL load with less than1% distortion.
The 8002 is designed specifically to provide high quality output power with a minimal amount of external components. It does not require output coupling capacitors or bootstrap capacitors. The 8002 is ideally suited for audio speakers and other low voltage applications.
With special pop-click eliminating circuit, the 8002 provides perfect pop-click characteristic during turn-on and turn-off transitions.

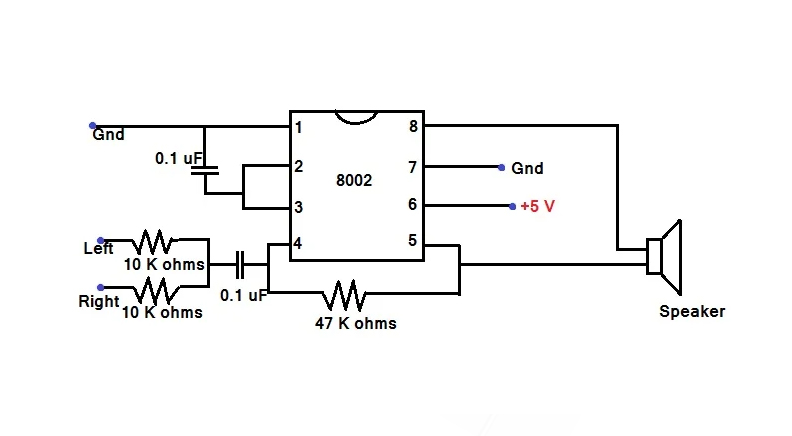

The 8002 is unity-gain stable and can be configured by external gain-setting resistors.
Features
Improved PSRR at 217 Hz & 1 KHz 60 dB
Power output at 5.0V, 10% THD+N, 4Ω 2.0 W (typ.)
Power output at 5.0V, 1% THD+N, 8Ω 1.5 W (typ.)
2.2V – 5.5V operation
Improved circuitry eliminates pop-click noise during turn-on and turn-off transitions
No output coupling capacitors, snubber networks or bootstrap capacitors required
Unity-gain stable
External gain configuration capability

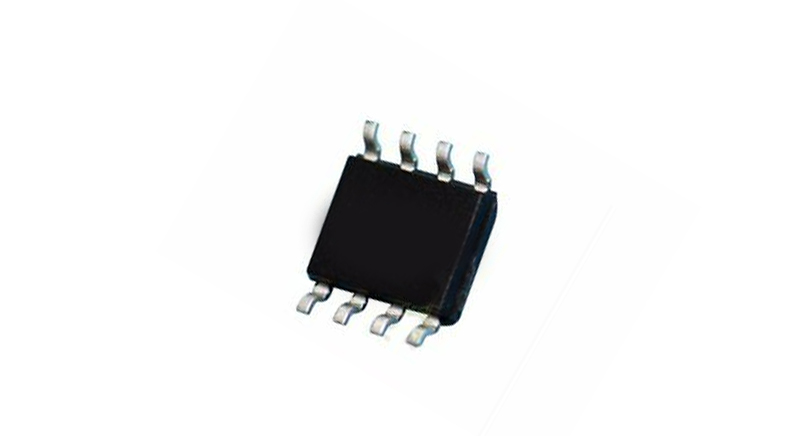

Packages: SOP8
