مشخصات
پردازنده هستهAVR
سایز هسته8 بیت
سرعت10 مگاهرتز
ارتباطاتI²C و SPI و UART/USART
قابلیت های جانبیBrown-out Detect/Reset و POR و PWM و WDT
تعداد ورودی/ خروجی23
سایز حافظه برنامه ریزی4 کیلو بایت (2 کیلو در 16)
نوع حافظه برنامه ریزی فلش
سایز EEPROM 256 در 8
سایز RAM512 در 8
ولتاژ تغذیه 1.8 ولت تا 5.5 ولت
تعداد مبدل آنالوگ به دیجیتال8 عدد
مبدل آنالوگ به دیجیتال 10 بیتی
تعداد مبدل دیجیتال به انالوگ-
نوع اسیلاتورداخلی
دمای کاری منفی 40 درجه سانتیگراد تا 85 درجه سانتیگراد
نوع نصب سطحی یا SMD

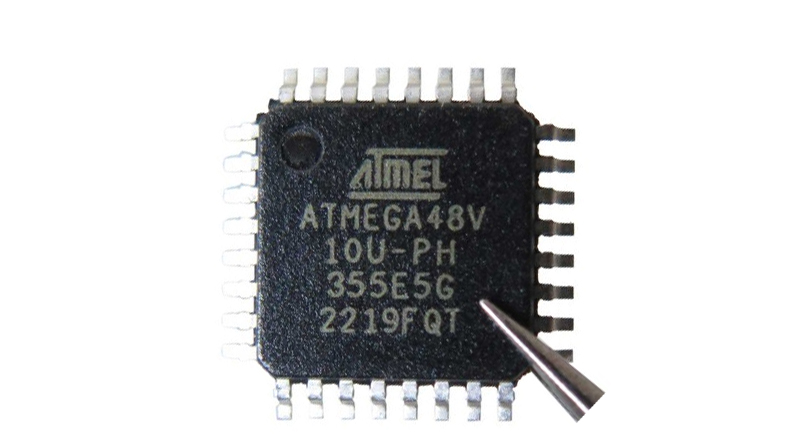

پکیج فوت پرینت32-TQFP-7x7
کارخانه سازندهMicrochip Technology
Description:
The Atmel® ATmega48/V/ 88/V /168/V is a low-power CMOS 8-bit microcontroller based on the AVR® enhanced RISC architecture. By executing powerful instructions in a single clock cycle, the ATmega48/V/ 88/V /168/V achieves throughputs close to 1MIPS per MHz. This empowers system designer to optimize the device for power consumption versus processing speed.
Features:
High Performance, Low Power Atmel®AVR® 8-Bit Microcontroller Family
• Advanced RISC Architecture
– 131 Powerful Instructions
– Most Single Clock Cycle Execution
– 32 x 8 General Purpose Working Registers
– Fully Static Operation
– Up to 20 MIPS Throughput at 20MHz
– On-chip 2-cycle Multiplier
• High Endurance Non-volatile Memory Segments
– 4K/8K/16KBytes of In-System Self-Programmable Flash program
Memory
– 256/512/512Bytes EEPROM
– 512/1K/1KBytes Internal SRAM
– Write/Erase Cycles: 10,000 Flash/100,000 EEPROM
– Data Retention: 20 years at 85°C/100 years at 25°C(1)
– Optional Boot Code Section with Independent Lock Bits
• In-System Programming by On-chip Boot Program
• True Read-While-Write Operation
– Programming Lock for Software Security
• Atmel® QTouch® Library Support
– Capacitive Touch Buttons, Sliders and Wheels
– QTouch and QMatrix® Acquisition
– Up to 64 sense channel
Peripheral Features
– Two 8-bit Timer/Counters with Separate Prescaler and Compare Mode
– One 16-bit Timer/Counter with Separate Prescaler, Compare Mode, and Capture Mode
– Real Time Counter with Separate Oscillator
– Six PWM Channels
– 8-channel 10-bit ADC in TQFP and QFN/MLF package
• Temperature Measurement
– 6-channel 10-bit ADC in PDIP Package
• Temperature Measurement
– Two Master/Slave SPI Serial Interface
– One Programmable Serial USART
– One Byte-oriented 2-wire Serial Interface (Philips I2C compatible)
– Programmable Watchdog Timer with Separate On-chip Oscillator
– One On-chip Analog Comparator
– Interrupt and Wake-up on Pin Change
• Special Microcontroller Features
– Power-on Reset and Programmable Brown-out Detection
– Internal Calibrated Oscillator
– External and Internal Interrupt Sources
– Six Sleep Modes: Idle, ADC Noise Reduction, Power-save, Power-down, Standby, and
Extended Standby
• I/O and Packages
– 23 Programmable I/O Lines
– 28-pin PDIP, 32-lead TQFP, 28-pad QFN/MLF and 32-pad QFN/MLF
• Operating Voltage:
– 2.7 - 5.5V for ATmega48/88/168
– 1.8 - 5.5V for ATmega48V/88V/168V
• Temperature Range:
– -40°C to 85°C
• Speed Grade:
– ATmega48/88/168: 0 - 10MHz @ 2.7V - 5.5V, 0 - 20MHz @ 4.5V - 5.5V
– ATmega48V/88V/168V: 0 - 4MHz @ 1.8V - 5.5V, 0 - 10MHz @ 2.7V - 5.5V
• Power Consumption at 1MHz, 1.8V, 25°C
– Active Mode: 0.3mA
– Power-down Mode: 0.1μA
– Power-save Mode: 0.8μA (Including 32kHz RTC)
-
