نام محصول: ژیروسکوپ تک محوره
ENC-03RC مدل
نوع محور: تک محوره
حساسیت:0.67
سرعت زاویه ایی :300
پهای باند 50 هرتز
EU RoHS Supplier Unconfirmed
Part Status Obsolete
Axis Type Single
( Axis Type describes the Number of Axis on which the Sensor detect the Rotation )
Typical Sensitivity (mV/°/s) 0.67
Typical Sensitivity describes the relationship between 1dps and the analog gyroscopes output voltage change over the zero-rate level. For digital gyroscopes, the sensitivity (dps/LSB) is the relationship between 1LSB and dps.
Typical Angular Velocity (°/s) ±300(Max)
Typical Angular Velocity describes the quantitative expression of the amount of rotation that a spinning object undergoes per unit time also called rotational velocity.
Typical Bandwidth (Hz) 50
Typical Bandwidth describes the difference between the upper and lower frequencies in a contiguous set of frequencies.
Technology Piezoelectric
Technology describes the technology type of manufacturing the device.
Topology v(1,1)
Topology describes the number of output and the input bias connections for the sensor.
Typical Output Voltage (V) 1.35
Typical Output Voltage describes the Typical voltage can be delivered to the load and released by a device.
Minimum Operating Supply Voltage (V) 2.7
Minimum Operating Supply Voltage describes the minimum supply voltage at which a device is specified to operate in compliance with the applicable device specification.
Maximum Operating Supply Voltage (V) 5.25
Maximum Operating Supply Voltage describes the maximum supply voltage at which a device is specified to operate in compliance with the applicable device specification.
Minimum Operating Temperature (°C) -5
Minimum Operating Temperature describes the minimum temperature that the device can function correctly while working.
Maximum Operating Temperature (°C) 75
Maximum Operating Temperature describes the maximum temperature that the device can function correctly while working.
Linearity Yes
Linearity describes the maximum deviation of the output function from an ideal straight line.
Linearity Error (%) ±5
Linearity Error describes the maximum error between the position sensor's outputs and the best fit straight line in percentage with respect to full scale
Packaging Tape and Reel
Packaging describes the method of containing/packaging a product for delivery or sales.
Supplier Package SMD
Pin Count 4
Pin Count describes number of leads attached to package body or number of contact points for each component.
Standard Package Name SMD
Mounting Surface Mount
Package Height 2
Package Length 8
Package Width 4

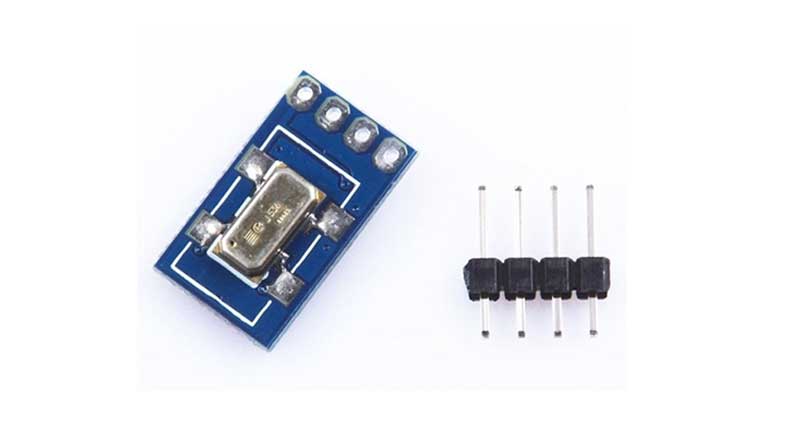

این ماژول بر روی برد کمکی قرار داده شده است که همانند تصویر به فروش می رسد
